SIVTEK SELF CLEANING FILTER®

Providing optimal filtration of liquid substances, the SIVTEK Self Cleaning Filter® is designed to efficiently strain watery applications as well as highly viscous substances. Its automatic filters can eliminate suspended and unwanted particles present in the substance.

Automatic filters are revered as the most optimal in comparison to conventional self-cleaning strainers. Working on Delta P’s principle, its automatic self-cleaning filters are designed to regulate pressure difference for the continuous filtering process automatically.

There are numerous reasons why SIVTEK Self Cleaning Filter® are amongst the best in the market, but the most impressive property of our product is the 24X7 capacity to process the substance continuously.

automatic industrial filter

REMOVE SOLID
FROM LIQUID
WITH OUR AUTOMATIC
FILTER

The automatic filter can process continuously because its ingenious and robust design eliminates the need of changing the filters. Where conventional filters require periodic cleaning after every batch, our automatic filters are powered by pneumatic actuators that are installed with a cleaning disk.

The cleaning disk intuitively collects and cleans the solid particles that are accumulated in the mesh basket. It can withstand the filtration of liquids that are as hot as 250℃. For utmost sturdiness and integrity, the Self-Cleaning Filter is totally made with high-grade stainless steel. It is also available in four different sizes: 2”, 4”, 6”, and 8”.

Galaxy Sivtek is one of the world’s largest industrial filter manufacturers who have been consistently pleasing our clients with our automatic self-cleaning filters. Constructed with a simple and robust design, they are more reliable, convenient, manageable, and above all, long-lasting.

You can also build your customized self-cleaning liquid filter to receive your desired results. You can enhance the processing of automatic filters by installing a dual cylinder that can handle the heavy flow of liquid substances without facing a breakdown.

We are constantly improving our filtration systems to reach higher productivity and better user satisfaction for our clients.

< rotate sideways > rotate_180

Working

Principle

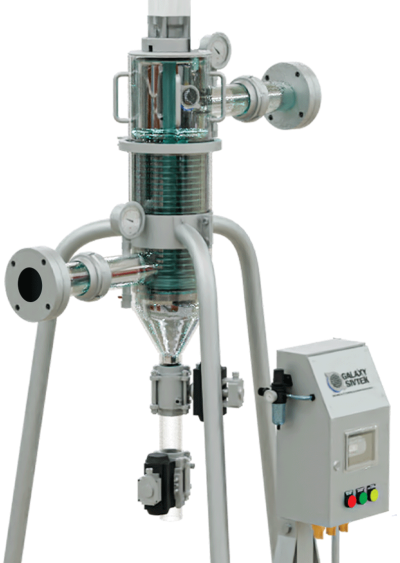

self-cleaning filter

SET AND BE FREE AUTOMATIC FILTERING MACHINE

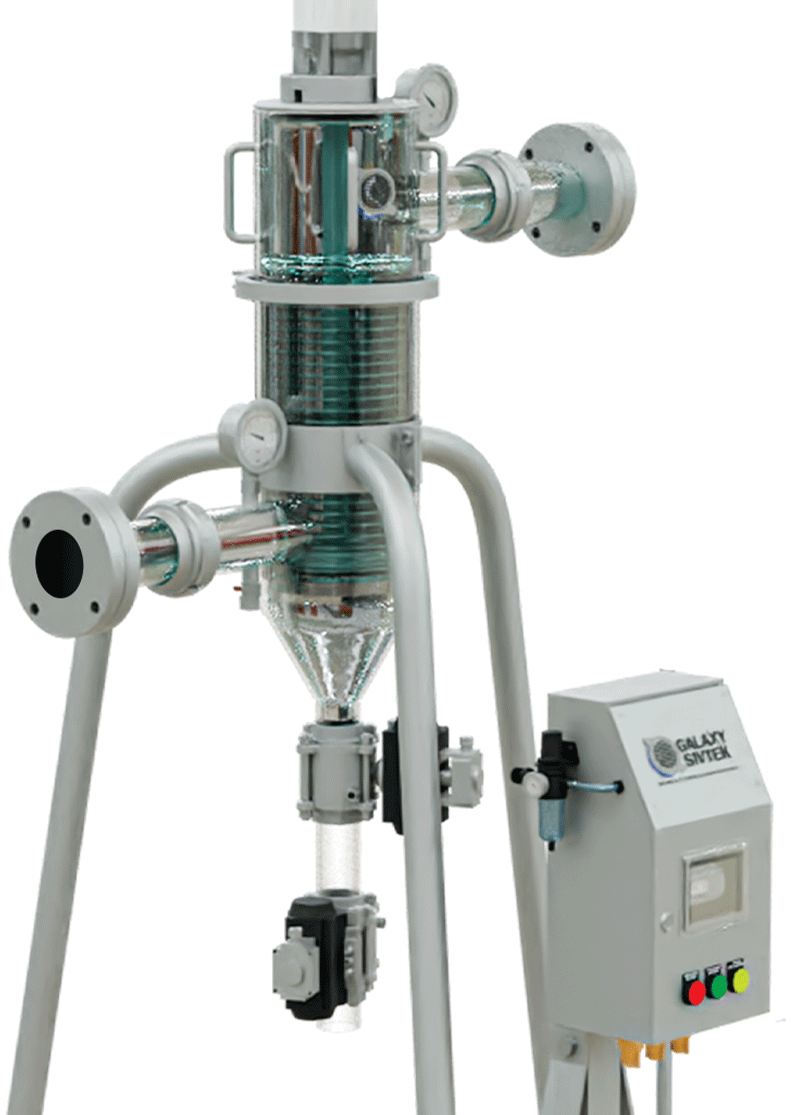

The Sivtek self-cleaning filter® works on the principle of the ΔP, i.e., the differential pressure of the inlet and the outlet, where the material flows from the higher-pressure zone to the lower pressure zone. Here the material is collected on the outer periphery of the backet, and with the help of the disc cleaning arrangement that material is collected in the bottom chamber of the flushed out at regular intervals.

PRODUCT

Feature

01. Automatic Pneumatic Actuators

Where conventional filters require periodic cleaning after every batch, our automatic filters are powered by pneumatic actuators that are installed with a cleaning disk.

02. Hygienic Filtration

The self-cleaning filter comes with a cleaning disk that accumulates the particles and residues from the periphery of the basket.

03. High-Temperature Filtration

Sivtek Self Cleaning Filters can withstand the filtration of liquids that are as hot as 250℃

04. Plug and Play Function

The ‘Plug and Play Function’ of the machine automatically controls cylinder strokes which rotates the cleaning disk and removes the contaminants on the filter.

PRODUCT

Advantage

01

Optimum Filtration

The filters provide the finest level of screening, and the cleaning disk assures to keep the filters clean.

02

Lower Maintenance

With most of the processes being automated, it is considerably easier to maintain and clean this machine.

03

24X7 Continuous Processing

The most impressive property of our product is the 24X7 capacity to continuously process the substance without taking a break.

TECHNICAL

Specifications

Model Diameter Area Layers
SCF 250 457 mm2 0.16 m2 01
SCF 500 600 mm2 0.22 m2 01
SCF 800 762 mm2 0.40 m2 01
SCF 1600 1016 mm2 0.63 m2 01
tumbler screen

Machine

Enhancers

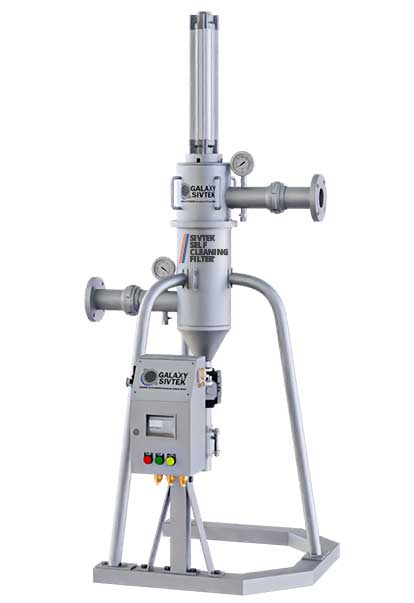

Bead Blast Finish

self cleaninig filter

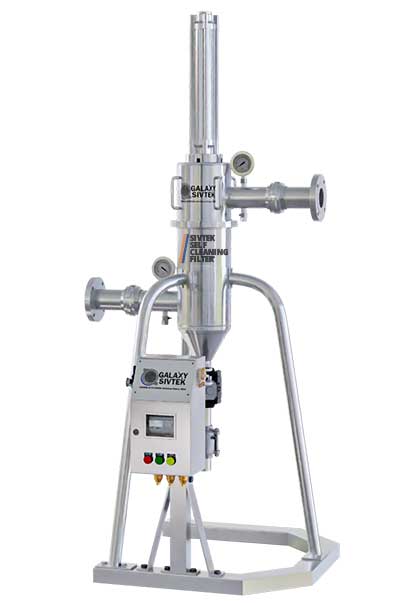

Mirror Finish

self cleaninig filter - mirror finish

Machine

Finish

To cater the wide range of applications, industries, and customer requirements, two different finishes are available, such as mirror and bead blast finish. Finishes like these can be used in numerous food and pharma and paint’s applications.

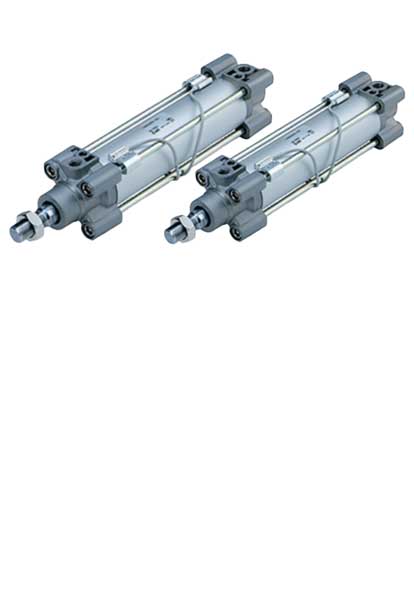

DUAL CYLINDER

Dual Cylinder For Filter

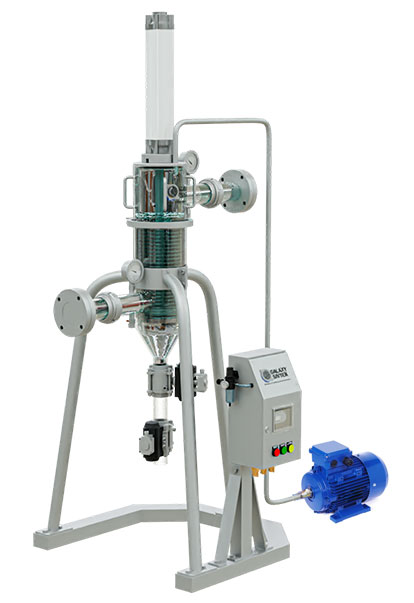

CLEAN IN PLACE

Clean in place for filter

FILTER JACKETING

filter jacketing

Capacity

Enhancers

In addition to our machines, there are multiple capacity enhancements available, such as Dual cylinder, filter jacketing and, CIP system. These add-ons can improve throughput, efficiency, and other parameters.

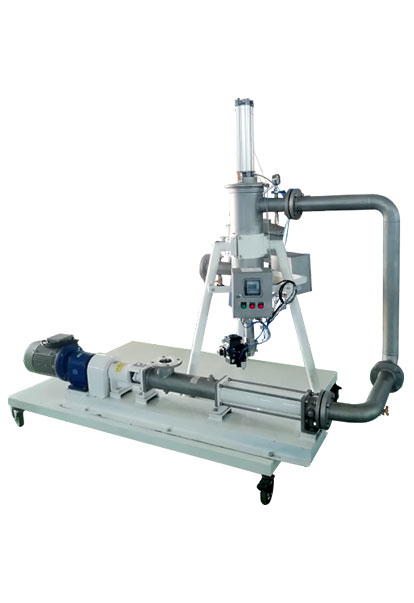

PROGRESSING CAVITY PUMP

self clening filter pump

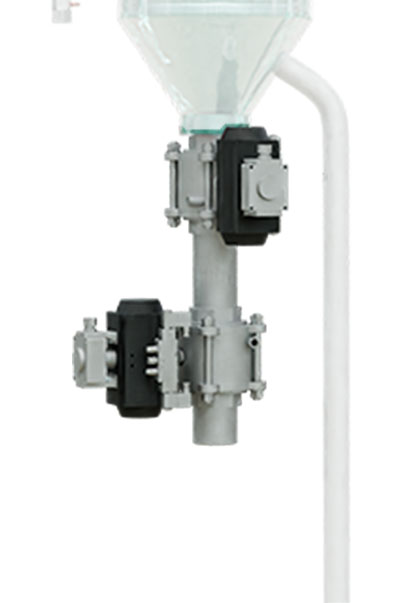

DOUBLE ACTUATOR

Double Actuator For Filter

Material

Handing System

The self-cleaning filter comes with optional material handling system such as the single and double actuator with timer, these are automatic regulation valve handling the material flow timing.

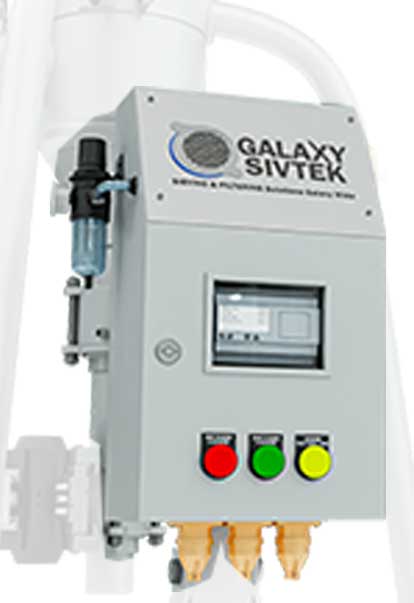

FILTER MANAGEMENT SYSTEM

Filter managment system

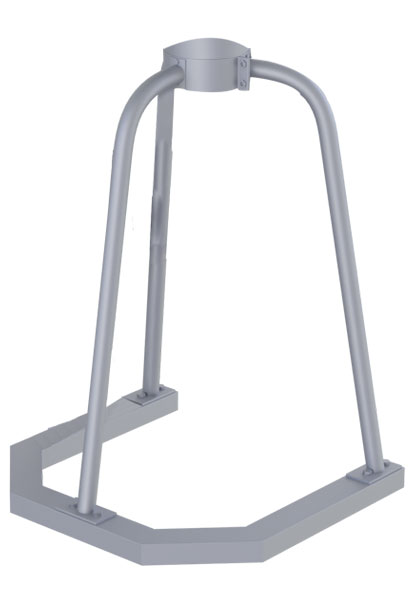

FILTER STAND

Filter Stand

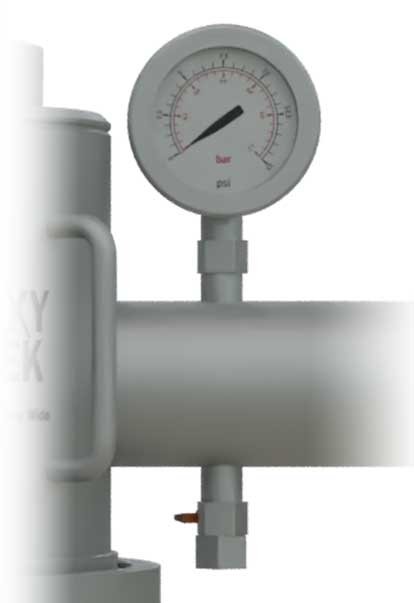

PRESURE GAUGE

Pressure Gauge

VALUE

ADDED EQUIPMENT

Numerous value-added solutions are available to improve the usability of the product, and adjust the filter according to the present plant layout, such as the stand, filter management system, pressure gauge, etc.

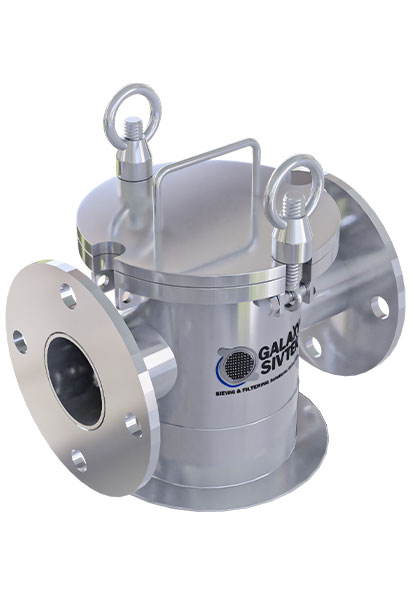

LIQUID MAGNET

Liquid Magnet

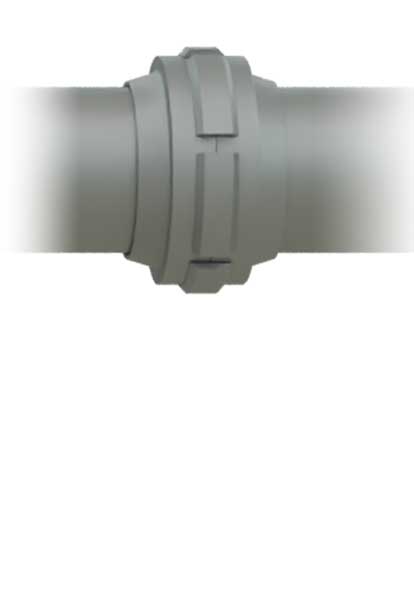

RJT CONNECTIONS

RJT Connections

Machine

Addons

To Improve the hygienic standards in final material’s quality we provide various types of safety check measures like the magnetic grills, magnetic belt separator, etc. and we also suggest few addons like BFM fittings, rubber bellow to transfer the material from one machine to another to maintain hygiene and prevent external contamination.

talk-export

Valued

Resources

sivtek-super-gyro-separator-brochure

Product Brochure

Download Now
sivtek-super-gyro-separator-brochure

Product Brochure

Download Now
sivtek-super-gyro-separator-brochure

Product Brochure

Download Now

Frequently

Asked Questions

01

What are the area and Industries where the Self-cleaning filter® is used??

02

What is the working principle of the self-cleaning filter®??

03

Up to what viscosity can the self-cleaning filter® handle??

04

Up to what pressure the self-cleaning filter® can handle??

05

What are the different models of the Self-cleaning filters®??

06

What are the range of the baskets used in the self-cleaning filter®??
