Rectangular Separator®

Sivtek Rectangular Separator® provides you with a uniquely designed horizontal vibrating screener, which will revolutionize the way you screen difficult and tedious screening materials. The machine is embedded with dual convertible screening decks that allow you to perform thorough processing of huge screening quantities. Various industries have adopted our Sivtek Rectangular Separator® for its efficiency and productivity in screening materials of a wide range, including wet, sticky, and abrasive materials.

The ingenious design of the Sivtek Rectangular Separator® allows you to maintain the purity and finesse of the screening material while allowing you to substantially increase your feed flow. The double-vibration motors that are installed under the screening deck allow you to generate a high level of steady vibrations which can collectively make the particles jump on the screen. This is a very efficient method of removing and separating unwanted particles from the screening material.

Even though the dual-motor engine is a marvelous attribute of this industrial vibro screener, what makes Sivtek Rectangular Separator® so exceptional is its versatility and flexibility in screening materials. While it allows you to increase the vibrations of your machine substantially, it also provides you with the adaptability to adjust depending on the specific requirements of your screening material.

rectangular separator

HORIZONTAL
VIBRATING
SCREEN

The linear design of the machine provides you with a higher malleability and free flow of screening material which increases the efficiency of the screening process. And with the added benefit of a clamping system, you can easily clean any residues and meat that are left behind in the machine.

Sivtek Rectangular Separator® has shown exceptional results in processing materials that are dry, wet, abrasive, and sticky, which makes it ideal for industries, like pharmaceuticals, food processing, chemicals, and many more.

No matter what the screening material is, Sivtek Rectangular Separator® will allow you to screen each and every particle and provide you with the performance that you desire.

You can also customize your linear vibrating screen machine with an enhanced CIP system to make the cleaning process more efficient.

< rotate sideways > rotate_180

Working

Principle

vibrating screen

LINEAR MOTION VIBRATING SCREEN FOR OPTIMUM GRADATION

The most ingenious aspect of Sivtek Rectangular Separator®’s design is the placement of the dual motors. Being attached at the rear end of the screening deck, the two motors allow you to produce synchronized vibrations that generate exciting forces on the screen. This makes the particles move in a straight line, as the stacking forces act perpendicularly to the motor shafts. When these exciting forces are combined with the self-gravity of the material, the machine through the screening material upwards in a linear motion on the screen surface.

PRODUCT

Feature

01. Higher Output

The Sivtek Rectangular Separator® is designed to process heavy-duty screening materials and generate higher output than any conventional machine.

02. Adjustable Power Distribution

Sivtek Rectangular Separator® also allows you to adjust the power distribution according to your required production conditions.

03. Easy Cleaning

With multiple options and knobs to disassemble the machine, it is very easy to clean the machine.

04. Conceal System

The machine is tightly enclosed, which prohibits the screening material from overflowing or any other particles from entering the machine. It is 100% contamination-free.

PRODUCT

Advantage

01

Enhances Product Quality

With the accurate gradation results, preserving the material from contamination ensures that the product remains in its optimum quality.

02

Optimum Output

The Sivtek Rectangular Separator® provides optimum and higher quality output in comparison with any other conventional screening machine.

03

Lower Maintenance

With most of the processes being automated and longer-lasting wear parts, it is considerably easier to maintain and clean this machine.

TECHNICAL

Specifications

Model Diameter Area Layers
RS 20*40 0.16 mm2 0.98 m2 02
RS 20*60 0.22 mm2 02
RS 30*50 0.4 mm2 02
RS 30*60 0.63 mm2 02
RS 40*70 0.98 mm2 2.8 m2 02
rectangular separator

Machine

Enhancers

Bead Blast Finish

rectangular separator - bead blast finish

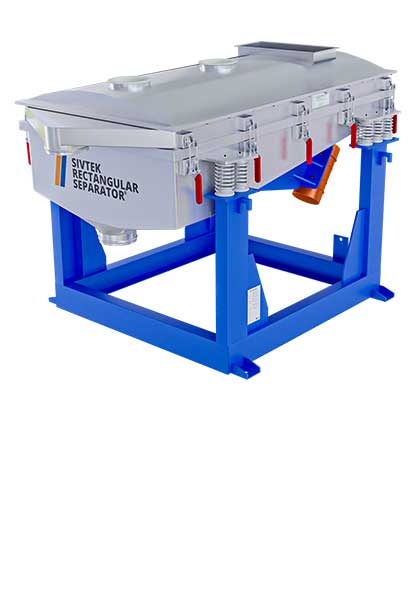

Brush Finish

rectangular separator - brush finish

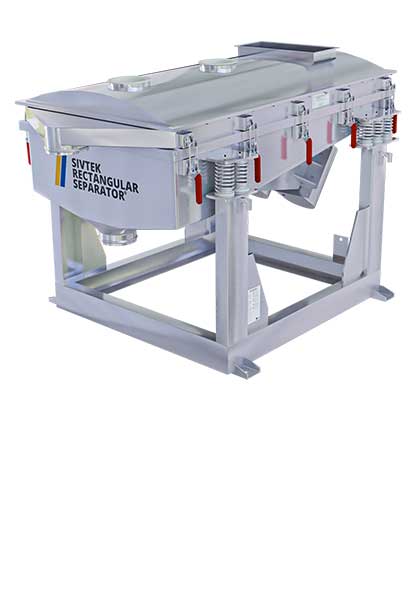

Mirror Finish

rectangular separator - mirror finish

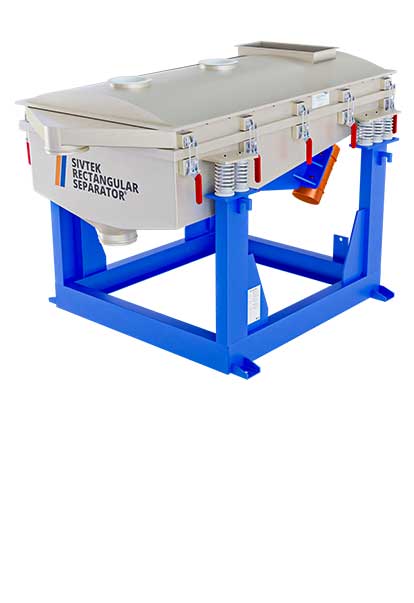

MILD STEEL PAINT

rectangular separator - mild steel

Machine

Finish

To cater the wide range of applications, industries, and customer requirements, four different types of finishes are available, such as mirror finish, bead blast finish, brush finish, and paint. Finishes like these can be used on a wide range of materials such as powders, granules, liquid or slurries.

Mesh Deblinding Kit

mdk-4

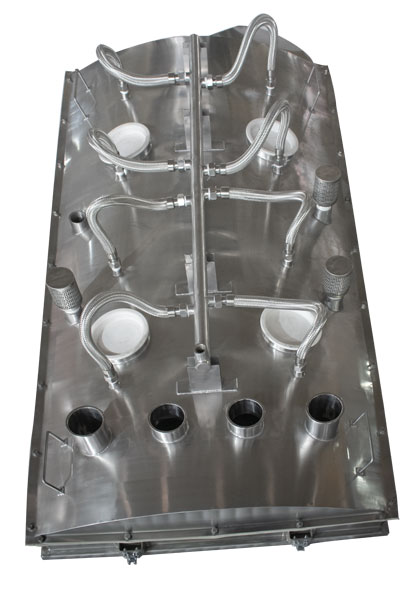

Clean In Place

Clean in place for vibrating screen

Capacity

Enhancers

In addition to our machines, there are multiple capacity enhancements available, such as Mesh Deblinding Kits, Maximizer decks, Rotary Brush Cleaning Systems, etc. These features can improve the throughput capacity, efficiency, mesh life etc.

HOPPER

Hopper

SCREW CONVEYOR

screw conveyor

BUCKET ELEVATOR

Bucket Elevator

POWDER TRANSFER SYSTEM

Powder Transferring System

Material

Handing System

Based on years of experience in handling bulk materials for various industries which includes Screw Conveyors and Powder Transfer Systems, bag dump station etc. These solutions help to maintain hygienic standards and transferring and packing material become easier.

ANTI VIBRATION MOUNT

Anti Vibration Mount

VALUE

ADDED EQUIPMENT

We are dealing with different accessories such as Pneumatic deck lifting mechanism, anti-vibration mounts, automatic lubricator, etc. These accessories can help the users to operate the machine with ease and more effectively and reduced manual work and increase machine’s life also.

MAGNETIC GRILL

Magnetic Grill

BFM FITTINGS

BFM Fittings

BELLOW & SLEEVE

Bellow & Sleeves

MAGNETIC BELT SEPARATOR

Magnetic Belt Conveyour

Machine

Addons

To Improve the hygienic standards in final material’s quality we provide various types of safety check measures like the magnetic grills, magnetic belt separator, etc. and we also suggest few addons like BFM fittings, rubber bellow to transfer the material from one machine to another to maintain hygiene and prevent external contamination.

talk-export

Valued

Resources

sivtek-super-gyro-separator-brochure

Product Brochure

Download Now
sivtek-super-gyro-separator-brochure

Product Brochure

Download Now
sivtek-super-gyro-separator-brochure

Product Brochure

Download Now

Frequently

Asked Questions

01

What are the applications you can sieve with rectangular separator??

02

What type of customizations available for this rectangular separator??

03

What are the different levels of gradations achieved??

04

What are the different deblinding arrangements??

05

How to increase the speed of movement across the screen??

06

What is the difference between Linea Sivtek® and Sivtek Rectangular Separator®??
