VACUUM SIVTEK®

Vacuum Sivtek® is a state-of-the-art vacuum sieve that is one of the best options to sieve particles in a contained environment. The production process of various industries, like pharmaceuticals and chemical industries, deals with sieving hazardous or contagious substances. It is highly necessary that the machines dealing with such substances are processed in a compact environment and are tightly contained.

The pneumatic screening of Vacuum Sivtek® can effortlessly contain your screening material, without causing any harm to it. While seamlessly conveying the screening material through the various processing stages, this vacuum sifter ensures the optimal quality of sieving by tightly containing the material in a closed system.

The self-loading sieve arrangement system of Vacuum SIVTEK® makes it incredibly easy and convenient to operate.

Vacuum Sifter

SIEVE
MATERIAL UNDER
100% DUST FREE
ENVIRONMENT

To ensure the safety and integrity of the vacuum sieve, Vacuum SIVTEK® is made with the highest quality stainless steel, ranging from SS 304 to SS 316L levels. You can customize your pneumatic screener in a wide range of sizes and diameters, from 24” up to 48” inches.

We are one of the world’s largest sieving machine manufacturers who believe in providing our clients with the best quality sieving machines. Our products are highly revered for producing high-level vibrations. Our sieving machines ensure a high level of hygiene and safety which are certified by CGMP and the FDA.

< rotate sideways > rotate_180

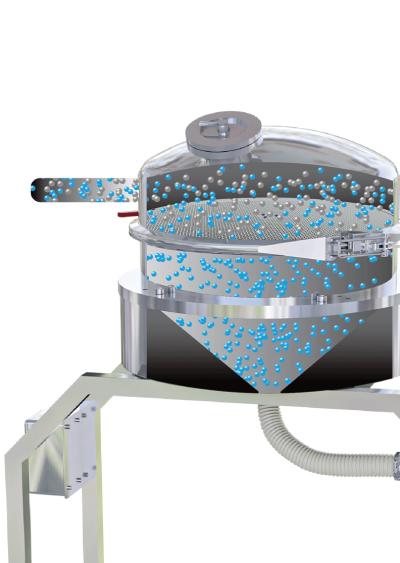

Working

Principle

pneumatic sifter

PNEUMATIC VIBRO SIFTER FOR DUST FREE ENVIRONMENT

To perform the in-line pneumatic scalping and dedusting of free-flowing materials, the Vacuum Sivtek employs a pneumatic sifter vibratory separator which has dilute-phase pneumatic conveying systems. The central bypass chute connects the top and bottom screens, which allows the on-size materials to enter the central chamber via two pathways: upward through the top screen then downward through the chute, or down through the button screen. The spout at the lower screen’s periphery ejects any oversize materials that are present.

PRODUCT

Feature

01. Conceal System

The machine is tightly enclosed, which prohibits the screening material from overflowing or any other particles from entering the machine. It is 100% contamination-free.

02. Hygienic Sieving Experience

The Vacuum Sivtek is made with premium quality stainless steel and precise finishing to administer the highest level of hygiene and safety of the screening material.

03. Convenient Inspection Window

To peek into the enclosed machine, we have installed inspection windows at convenient spots.

04. Customization Options

Vacuum Sivtek allows you to customize your pneumatic screening process in a wide range of sizes and diameters, ranging from 24” up to 48” inches.

PRODUCT

Advantage

01

Higher Output

The in-line pneumatic scalping and dedusting reduces the time consumption in processing heavy materials and makes the process quicker. This allows you to process more raw material in a fixed time.

02

Dust-free Operation

As the machine is tightly sealed from all directions, the dust particles from the raw materials cannot contaminate the machine. Hence, you don’t need to waste time repetitively cleaning the screens.

03

Compact Design

The Vacuum Sivtek has a compact design that requires low headroom and can be easily incorporated into the processing line.

TECHNICAL

Specifications

Model Diameter Area Layers
24 600 mm2 0.22 m2 01
30 762 mm2 0.40 m2 01
40 1016 mm2 0.63 m2 01
48 1200 mm2 0.98 m2 01
60 1600 mm2 1.81 m2 01
vacuum sivtek

Machine

Enhancers

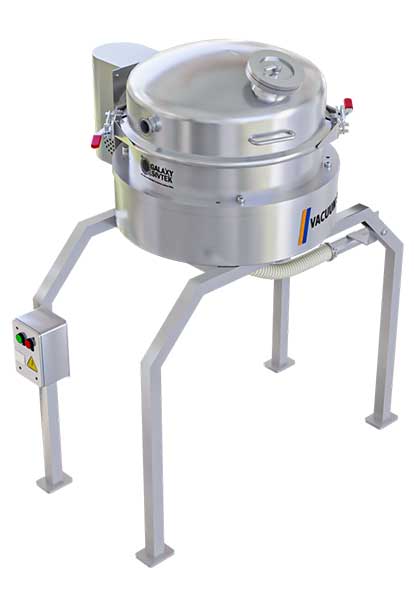

Brush Finish

vacuum sivtek - mirror finish

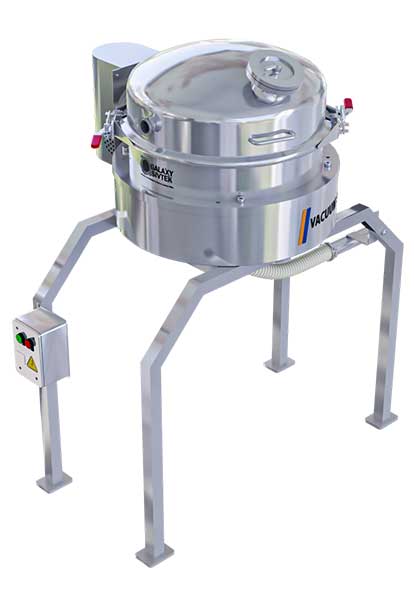

Mirror Finish

vacuum sivtek - brush finish

Machine

Finish

To cater the wide range of applications, industries, and customer requirements, four different types of finishes are available, such as mirror finish, bead blast finish, brush finish, and paint. Finishes like these can be used on a wide range of materials such as powders, granules, liquid or slurries.

Mesh Deblinding Kit

mdk-4

Clean In Place

Clean In Place

Capacity

Enhancers

In addition to our machines, there are multiple capacity enhancements available, such as Mesh Deblinding Kits, Maximizer decks, Rotary Brush Cleaning Systems, etc. These features can improve the throughput capacity, efficiency, mesh life etc.

POWDER TRANSFER SYSTEM

Powder Transferring System

Material

Handing System

Based on years of experience in handling bulk materials for various industries which includes Screw Conveyors and Powder Transfer Systems, bag dump station etc. These solutions help to maintain hygienic standards and transferring and packing material become easier.

ANTI VIBRATION MOUNT

Anti Vibration Mount

VALUE

ADDED EQUIPMENT

We are dealing with different accessories such as Pneumatic deck lifting mechanism, anti-vibration mounts, automatic lubricator, etc. These accessories can help the users to operate the machine with ease and more effectively and reduced manual work and increase machine’s life also.

MAGNETIC GRILL

Magnetic Grill

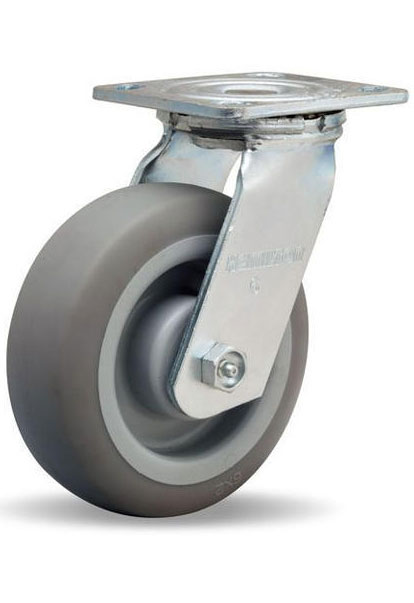

CASTOR WHEELS

caster wheel for sifter

BFM FITTINGS

BFM Fittings

BELLOW & SLEEVE

Bellow & Sleeves

MAGNETIC BELT SEPARATOR

Magnetic Belt Conveyour

Machine

Addons

To Improve the hygienic standards in final material’s quality we provide various types of safety check measures like the magnetic grills, magnetic belt separator, etc. and we also suggest few addons like BFM fittings, rubber bellow to transfer the material from one machine to another to maintain hygiene and prevent external contamination.

talk-export

Valued

Resources

sivtek-super-gyro-separator-brochure

Product Brochure

Download Now
sivtek-super-gyro-separator-brochure

Product Brochure

Download Now
sivtek-super-gyro-separator-brochure

Product Brochure

Download Now

Frequently

Asked Questions

01

What is the operating pressure of the machine?

02

Is it suitable for liquid applications?

03

Can it sieve small batches of products?

04

What are the customizations available for the machine?

05

What is the mesh size up to which the Vacuum Sivtek® can sieve?

06

Certification available with the machine?
