Super Sivtek®

The Super Sivtek® Separator is a high-powered vibrating sieving machine that can generate up to 3 times more vibration in comparison to any conventional sieving machine. With its wide range of high-powered functionalities, Super Sivtek® provides higher throughput of ultra-fine mesh with every round.

This vibratory sieve provides finesse and accuracy which can precisely separate up to 5 levels of particle gradations in one single operation. Its circular vibratory screen has a capacity of sieving up to 500 units without experiencing a breakdown. Moreover, with the compact size of the machine and high-capacity vibrations, Super Sivtek® is one of the most ideal industrial sieving machines that can help you make your process more efficient.

With its adjustable motor weights and seamless rotating angles, the sieving machine offers a powerful motor that can generate high-force vibrations. Along with that, the meticulously designed high-intensity vibrating screen separator helps the sieving machines perform even the most challenging sieving effortlessly. Super Sivtek® also has a strong bearing housing, which has mounted motors on the side that work on the principle of bet and pully mechanism.

< rotate sideways > 18 view

These finely manufactured and polished vibro energy separators are made with high-quality SS 304 & 316L steel. Depending on the wide range of requirements of diverse industries, the Super Sivtek® separator is also available in different finishes, like mirror, paint, brush, & bid blast.

The Super SIVTEK® separator is suitable for an array of dry and wet applications, including silica, tapioca starch, coffee beans, silver, and copper powder. To cater to the needs of our versatile clientele and the dynamic industry, our vibrating sieving machines also come in an array of size options.

Galaxy Sivtek is one of the world’s largest sieving machine manufacturers who believe in providing our clients with the best quality sieving machines. Our products are highly revered for producing high-level vibrations. Our sieving machines ensure a high level of hygiene and safety which are certified by CGMP and the FDA.

High vibration sifter

THE ROBUST
HIGH
VIBRATION
SIEVE

    Download Brochure

    Working

    Principle

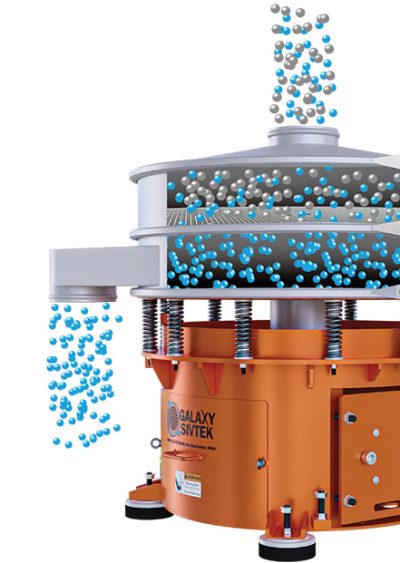

    Sieving Machine Cross section

    PROVIDES THREE TIMES HIGHER VIBRATION

    The intense vibrations in the machine are generated by the weight mounted shaft ends that are attached to the vibratory agent. While the upper weight provides the direction of screening, the lower weight vertically vibrates the material towards the periphery. Therefore, you can calibrate the upper and lower weights for diverse vibration behaviors that provide the optimal screening of your product.

    PRODUCT

    Feature

    01. Quick-Release Toggle Clamp

    The smartly engineered quick-release toggle clamps help you keep the functioning and operation of the machine easy.

    02. Made with high-quality products

    The Super Sivtek separator is made with durable quality material that is approved by US-FDA & cGMP.

    03. Convenient Inspection

    The convenient inspection windows installed in the Super Sivtek separator help you precisely inspect issues.

    04. Generates High-Capacity Vibrations

    The Super Sivtek Separator can generate 3 times more vibrations than an ordinary separator, which helps screen fine mesh up to 500#.

    PRODUCT

    Advantage

    01

    Higher throughput

    The heavy-duty motion generator in Super Sivtek can produce a significantly higher throughput whose vibrations are 3 times higher than any conventional vibrating screener.

    02

    Optimum Capacity

    With the capability to sieve up to 25μ, Super SIVTEK’s high-capacity separator provides up to 5 levels of gradation in just one single operation for precise particle size distribution.

    03

    Cost-efficient

    Due to Super SIVTEK’s high throughput, you require fewer vibrating separation systems which significantly reduces the costs.

    TECHNICAL

    Specifications

    Model Diameter Area Layers
    30 762 mm 0.40 m2 03
    40 1016 mm 0.63 m2 04
    48 1200 mm 0.98 m2 04
    60 1600 mm 1.81 m2 04
    72 1800 mm 2.01 m2 03
    84 2000 mm 2.08 m2 03
    Super Sivtek

    Machine

    Enhancers

    BEAD BLAST FINISH

    Super Sivtek - Bead Blast Finish

    BRUSH FINISH

    Super Sivtek - Brush Finish

    MILD STEEL PAINT

    Super Sivtek - Mild Steel Paint

    MACHINE

    FINISH

    To cater the wide range of applications, industries, and customer requirements, four different types of finishes are available, such as mirror finish, bead blast finish, brush finish, and paint. Finishes like these can be used on a wide range of materials such as powders, granules, liquid or slurries.

    Mesh Deblinding Kit

    mesh deblinding kit

    Rotary Brush

    rotary brush

    Ultrasonic Sivtek

    ultrasonic sivtek

    Clean In Place

    Clean In Place

    Capacity

    Enhancers

    In addition to our machines, there are multiple capacity enhancements available, such as Mesh Deblinding Kits, Maximizer decks, Rotary Brush Cleaning Systems, etc. These features can improve the throughput capacity, efficiency, mesh life etc.

    HOPPER

    Hopper

    SCREW CONVEYOR

    screw conveyor

    BUCKET ELEVATOR

    Bucket Elevator

    POWDER TRANSFER SYSTEM

    Powder Transferring System

    Material

    Handing System

    Based on years of experience in handling bulk materials for various industries which includes Screw Conveyors and Powder Transfer Systems, bag dump station etc. These solutions help to maintain hygienic standards and transferring and packing material become easier.

    DECK LIFTING ARRANGMENTS

    Deck Lifting Arrangments

    ANTI VIBRATION MOUNT

    Anti Vibration Mount

    AUTOMATIC LUBRICATOR

    Automatic Lubricator For Vibro

    Value

    Added Equipment

    We are dealing with different accessories such as Pneumatic deck lifting mechanism, anti-vibration mounts, automatic lubricator, etc. These accessories can help the users to operate the machine with ease and more effectively and reduced manual work and increase machine’s life also.

    MAGNETIC GRILL

    Magnetic Grill

    BFM FITTINGS

    BFM Fittings

    BELLOW & SLEEVE

    Bellow & Sleeves

    MAGNETIC BELT SEPARATOR

    Magnetic Belt Conveyor

    Machine

    Addons

    To Improve the hygienic standards in final material’s quality we provide various types of safety check measures like the magnetic grills, magnetic belt separator, etc. and we also suggest few addons like BFM fittings, rubber bellow to transfer the material from one machine to another to maintain hygiene and prevent external contamination.

    talk to our expert

    Valued

    Resources

    Sieving Machine

    Product Brochure

    Download Now
    Vibro Sifter Spares

    Product Brochure

    Download Now
    Ultrasonic Sieving Machine

    Product Brochure

    Download Now
    Corporate Brochure

    Product Brochure

    Download Now

    Frequently

    Asked Questions

    01

    Difference between the Super Sivtek® and conventional vibro sifter?

    02

    What type of motor is used in Super Sivtek®?

    03

    Up to what mesh size Sivtek Super Gyro Separator® can Sieve?

    04

    What is the mesh size up to which the Super Sivtek® can sieve?

    05

    What kind of applications can handle by Super Sivtek®?

    06

    What are the different customizations available for the Super Sivtek®?
