Sivtek Tumbler Screen®

Acclaimed across the industry for its unique construction, our newest range of Tumbler Screen is one of the most efficient separators that can process fine mesh and reduces the screening time. It increases your capacity, efficiency, and it is an ideal choice for screening materials with low bulk density and fine particle requirements.

The crux of the Sivtek Tumbler Screen’s high functionality lies in its acute design. It provides a 3-dimensional elliptical motion which allows the machine to set radial and tangential inclination. While the radial inclination allows the screening material to travel from the centre to outwards, the tangential inclination makes the screening material move in a circular motion.

This intuitive motion of the machine allows the fine particles to pass through the centre of the screens and pushes coarse particles to the periphery, which can be discharged as per your requirements.

< rotate sideways > 18 view

The simple yet convenient design of our Tumbler Screen increases efficiency and provides economical outcomes. The compact structure of the machine occupies less space and manpower, which reasonably cuts your maintenance costs. The gyro sieves on the machine can easily be disassembled, which makes it easier to clean.

Furthermore, this amazing vibro screen is meticulously designed to deliver optimal efficiency, regardless of the qualities of the material. Its capability to process high bulk density products makes it an ideal screening machine for foods & beverages, minerals & metallurgy, plastic, and chemical industries. It can provide the highest level of gradation for low bulk density products like granules and talc powder.

While dealing with highly sensitive products pertaining to the food, pharmaceuticals and chemical industries, we understand the need to keep our products at the highest standards and safety. Our Tumbling Screen adheres to GMP & FDA guidelines and provide extremely smooth surface & cervix-free joints for efficiency.

Our products are available in a wide range of sizes and diameters. While our products are built with standard mild steel, our customization services can also provide you with these products on 304, 316, and 316L grades of stainless steel.

Tumbler Screener

THE ROBUST
TUMBLING
MOTION
SIEVE

    Download Brochure

    Working

    Principle

    Tumbler Screener cross section

    PROVIDES THREE-DIMENSIONAL ELLIPTICAL MOVEMENT

    The way our Tumbler Sivtek works is that the screening material is continuously fed into the centre of the top screen, from where it spreads out evenly to the outside across the entire screening surface. As the materials move in a circular motion, the finer particles pass through the centre of the screen and the coarse particles are pushed to the periphery. All the separated fractions are discharged through the lateral outlets.

    PRODUCT

    Feature

    01. Closed System

    The SIVTEK Tumbling Screen is firmly designed to contain the screening material. It increases safety while operating with hazardous substances.

    02. Gradation up to 6 sizes

    Our Tumbling Screen machine is capable of providing particle gradation of up to 6 sizes which are available in the attachment of 5 decks.

    03. Noise Control

    Keeping the noise level below 75DB, the SIVTEK Tumbler Screen is quieter in comparison to any conventional Vibro sifters.

    04. Pneumatic Lifting System

    SIVTEK Tumbler Screen’s pneumatic lifting system makes tasks, like cleaning, maintaining and screen changing, effortless.

    PRODUCT

    Advantage

    01

    Highly Efficient & Accurate

    The elliptical movement of the machine creates a three-dimensional tumbling motion which increases efficiency by 99% and provides accurate gradation.

    02

    Long-Lasting

    The SIVTEK Tumbler Screen® works at 3-4 times lesser acceleration in comparison to any other vibrating separators, which preserves the tumbler screens for a long time.

    03

    Less Manpower Required

    With the streamlined screening process of the Tumbler Screen, you need not employ a huge workforce to operate the machine.

    TECHNICAL

    Specifications

    Model Diameter Area Layers
    TS1200 1200 mm 0.98m2 05
    TS1600 1600 mm 0.81 m2 05
    TS1800 1800 mm 2.01 m2 05
    TS2000 2000 mm 2.80 m2 05
    TS2600 2600 mm 5.31 m2 04
    sivtek tumbler screen

    Machine

    Enhancers

    Bead Blast Finish

    sivtek tumbler screen - bead blast

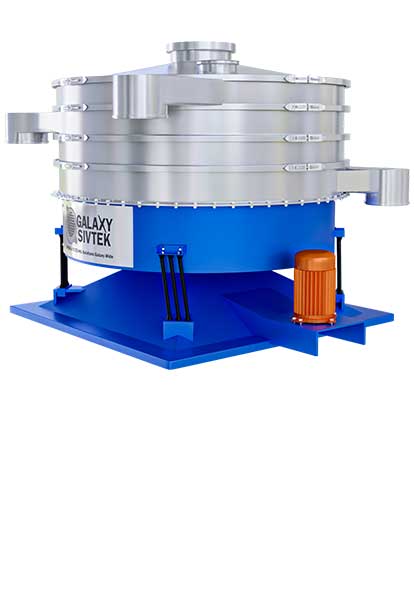

    Brush Finish

    sivtek tumbler screen - brush finish

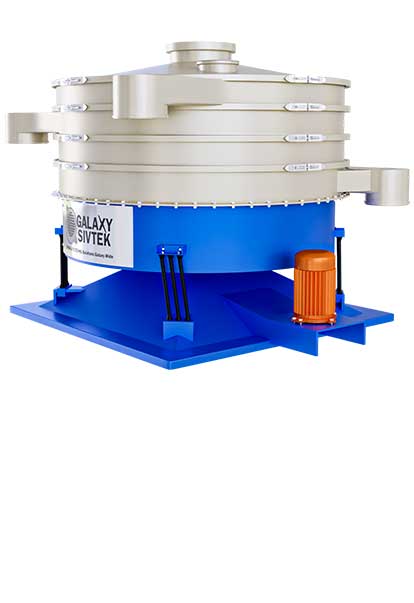

    Mild Steel Plant

    sivtek tumbler screen - ms paint

    Machine

    Finish

    To cater the wide range of applications, industries, and customer requirements, four different types of finishes are available, such as mirror finish, bead blast finish, brush finish, and paint. Finishes like these can be used on a wide range of materials such as powders, granules, liquid or slurries.

    Mesh Deblinding Kit

    mesh deblinding kit

    ultrasonic sivtek

    Clean In Place

    Capacity

    Enhancers

    In addition to our machines, there are multiple capacity enhancements available, such as Mesh Deblinding Kits, Maximizer decks, Rotary Brush Cleaning Systems, etc. These features can improve the throughput capacity, efficiency, mesh life etc.

    HOPPER

    Hopper

    SCREW CONVEYOR

    screw conveyor

    BUCKET ELEVATOR

    Bucket Elevator

    POWDER TRANSFER SYSTEM

    Powder Transferring System

    Material

    Handing System

    Based on years of experience in handling bulk materials for various industries which includes Screw Conveyors and Powder Transfer Systems, bag dump station etc. These solutions help to maintain hygienic standards and transferring and packing material become easier.

    DECK LIFTING ARRANGMENTS

    Deck Lifting Arrangments

    AUTOMATIC LUBRICATOR

    Automatic Lubricator For Vibro

    VALUE

    ADDED EQUIPMENT

    We are dealing with different accessories such as Pneumatic deck lifting mechanism, anti-vibration mounts, automatic lubricator, etc. These accessories can help the users to operate the machine with ease and more effectively and reduced manual work and increase machine’s life also.

    MAGNETIC GRILL

    Magnetic Grill

    BFM FITTINGS

    BFM Fittings

    BELLOW & SLEEVE

    Bellow & Sleeves

    MAGNETIC BELT SEPARATOR

    Magnetic Belt Conveyor

    Machine

    Addons

    To Improve the hygienic standards in final material’s quality we provide various types of safety check measures like the magnetic grills, magnetic belt separator, etc. and we also suggest few addons like BFM fittings, rubber bellow to transfer the material from one machine to another to maintain hygiene and prevent external contamination.
